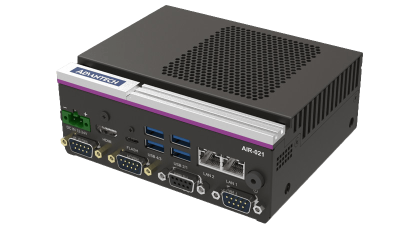

AIR-021
AI Inference System Based on NVIDIA® Jetson Orin™ NX/Nano
- A compact and high-performance AI Box
- NVIDIA® Jetson Orin NX 16GB/8GB and Orin Nano 8GB/4GB modules
- It supports a wide voltage range of 12 ~ 24V and a wide temperature range of -10 ~ 55 °C.
- Multiple I/O interfaces: including LAN, DIO, COM, CANBus, USB 3.2, and MIPI interface via Type-C.
- Multiple expansion interfaces: Supports M.2 B Key, M.2 E Key and SD card slot.
- Supports Linux Ubuntu 22.04 LTS and JetPack SDK version 6.2
- Supports GenAI Studio, which can be used for model fine-tuning and inference applications.
Edge AI SDK
| Download | System | AI Packages & Tools | Note & Dependency |
|---|---|---|---|
| v3.5.0 | • OS: Ubuntu 22.04 • JetPack: 6.2 • RAM: 16GB | • TensorRT: 10.3.0 • CUDA: 12.5 • DeepStream: 7.1 • VisionAI Demos: • Object Detection • Face Detection • Person Detection • Pose Estimation • GenAI Demos: • Chatbot | • Ubuntu 22.04 (kernel:5.15.148-tegra) |
AI Application | Vision AI Apps Gen AI Chatbot Pre-trained Models Monitoring Benchmark |
Utility | tegrastats Jetson_benchmarks |
AI SDK | TensorRT 10.3.0 CUDA 12.5 DeepStream 7.1 |
System | JetPack 6.2 |
OS / Kernel | Ubuntu-tegra |
AI Software Stack on AIR-021 ( v3.5.0 )
Advantech
NVIDIA
Open Source
AI Accelerator
None
AI Runtime SDK
JetPack
DeepStream
Application
Optimization
Benchmark & Tools
jetson_benchmarks
Tegrastats_Utility
